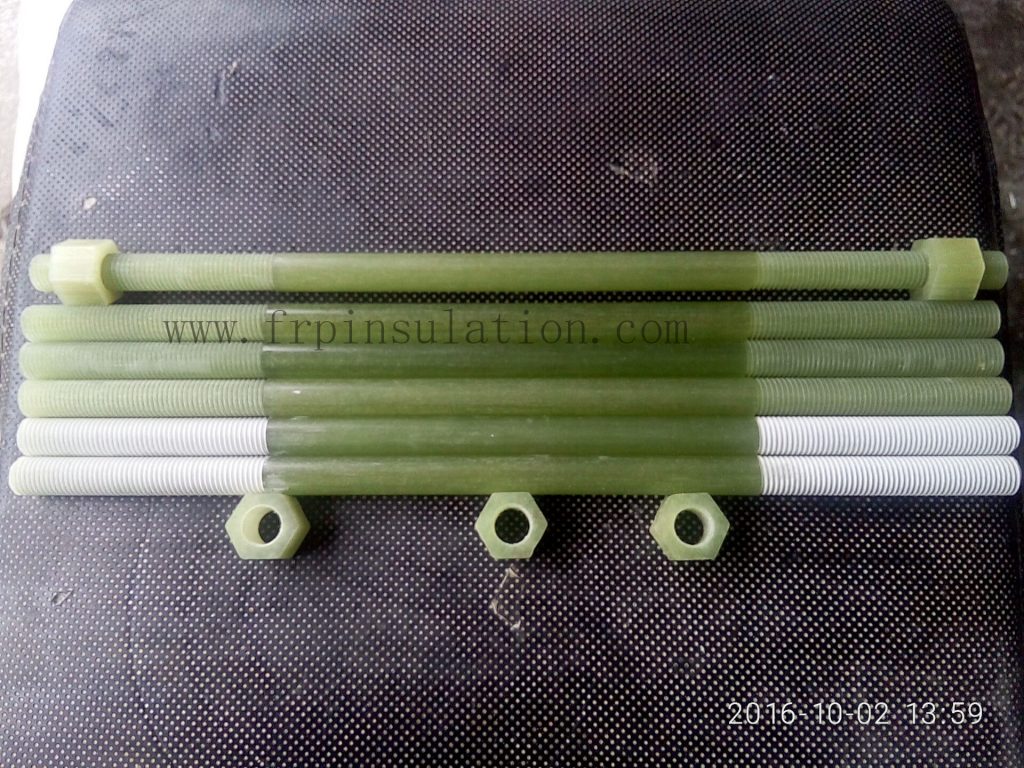

NAME : Light  green Glass-Cloth Reinforced Epoxy threaded rods 1 meter length with nuts  for transformer fastener

/INSULATION BOLTS NUTS ,INSUALTION NUTS /G10 NUTS /NUTS AND BOLTS   fastener

Characteristics:

The most versatile all-around laminate grades are continuous glass woven fabric impregnated with an epoxy resin binder. Epoxy resins are among the most versatile and widely used plastics in the electronics field, primarily because water absorption is virtually nil, rendering it an outstanding insulator

Size:  please ask for us.

COLOUR :GREEN /yellow /light green

Applications:

Extremely high mechanical strength,  good dielectric loss properties,

good electric strength properties,  both wet and dry.

Also can used as insulating part in machinery and electrical instruments, it also can be used as pressure ,usually used in the transformer generator motor and others

Size : according to customer design

Longth :500mm or 1000mm also can cut according to customer requirements



Epoxy laminated glass-fiber specification



Heat Resistance B Standard Q/DJ10-731-2000
Density ≥1.65g/cm3
Hydroscopicity < 0.60 MPA


Volume Resistively

Under normal ≥1.0×1010  Ω.cm
After immersion 24h ≥1.0×108Ω.cm


Insulation Resistance

Under normal ≥1.0×1010Ω
After immersion 24h ≥1.0×107Ω


Proof Voltage at perpendicular to lamination

(transformer oil at 90±

degree  for 5 min)







MV/m







≥8

Heat stability (150 degree ,/24 H ) No crack or plump up
